AutoBrightness

USB ambient light sensor for DDC/CI backlight control
Project started on September 07, 2024.
Last updated on September 09, 2024.

Recent activity on GitHub:

One of my two ~10 year old 23" 1080p main displays died recently. So I finally upgraded to two used 27" 1440p displays. These are now the first displays on my desktop that allow adjustments of the backlight from software. So I tried to find out how to go about that.

Turns out on laptops both the display backlight intensity and the ambient light sensors are controlled via ACPI, with proper kernel support already available (see eg. the Arch Wiki).

But on desktops no standard for ambient light sensors seems to be established. Instead of ACPI, the backlight of some desktop monitors can be controlled using DDC/CI.

There are some projects, both hardware and software, available for this already. But as usual I decided to make my own.

Prototype Hardware

Initially I tought I could just go the most simple route and use an LDR on the ADC of an MCU. I already had a Digispark Rev. 3 clone, LDR, resistor and potentiometer on hand.

But deep down I already knew this would not be good.

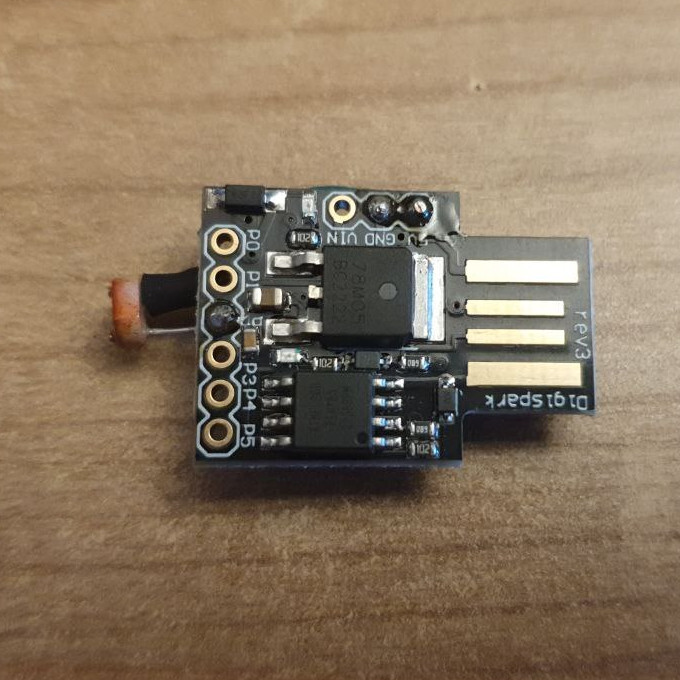

Front view of AutoBrightness prototype

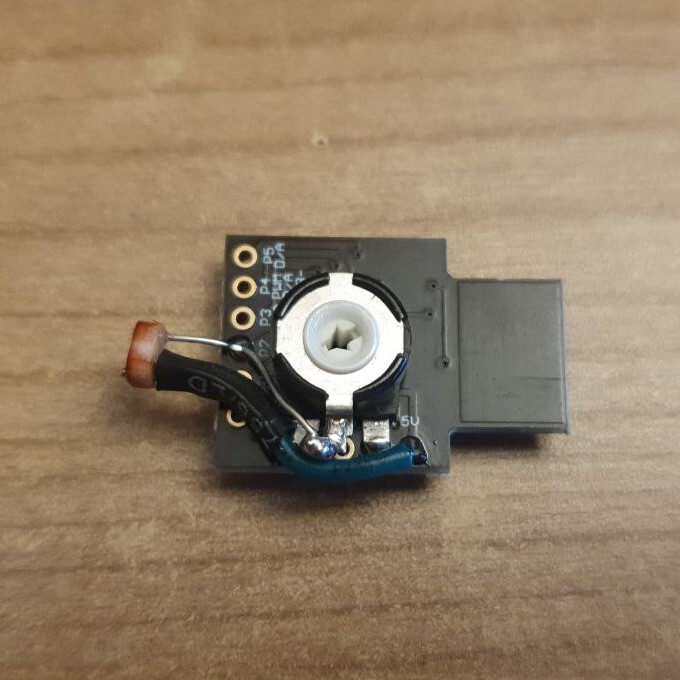

Back view of AutoBrightness prototype

The range of LDRs is far too big to easily measure the human eye dynamic range with an ADC. You can extend the range by switching different resistor values into your voltage divider using GPIOs, but I didn't want to go that far. Instead I added a 1M potentiometer to manually adjust the measurement range.

This gave me an opportunity to play around with integer low pass filters using bit shifts, as described here (which I got from here).

So as suspected, the resulting values were not able to measure both a dark room at night and a sunny day.

Proper Hardware

To get usable values I had to use a "real" sensor.

The final hardware is just a Digispark Rev. 3 clone with a GY-302 breakout board (for the BH1750 sensor) connected to it.

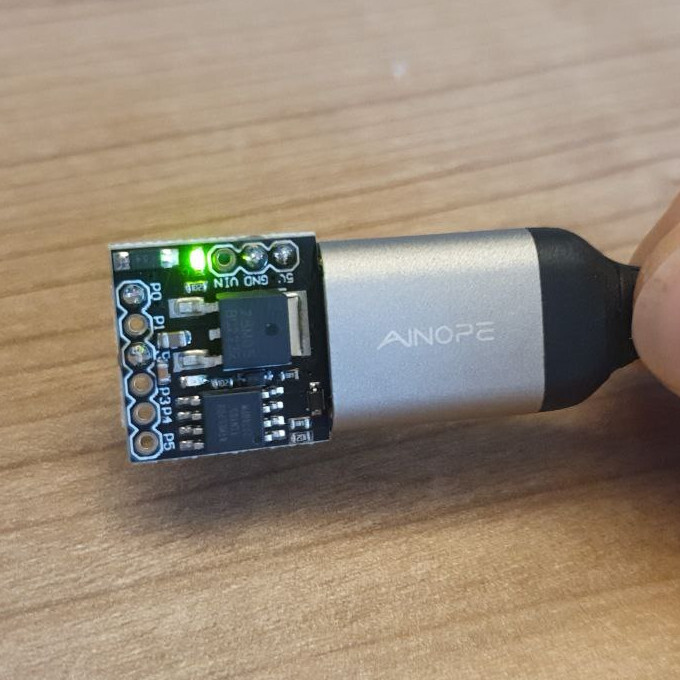

Front view of AutoBrightness device

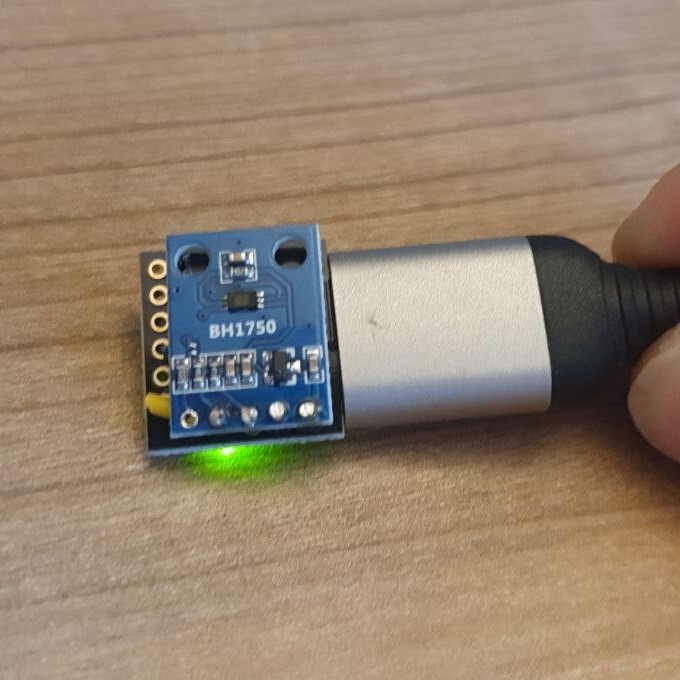

Back view of AutoBrightness device

The BH1750 is a nice small ambient light sensor and very easy to use. This is literally the whole driver I wrote.

void luxInit(void) {
    twiWrite(LUX_ADDR, OP_POWER_ON); // reset registers
    twiWrite(LUX_ADDR, OP_CONT_0_5X); // continuous measurement at 0.5lx resolution
}

uint16_t luxGet(void) {
    uint16_t val = twiRead(LUX_ADDR); // read measurement
    return val;
}

USB Communication

The Digispark has the USB D+ and D- signals directly connected to GPIOs of the AtTiny85. So the USB protocol is bit-banged using the V-USB library. Because I did not use the Arduino Cores already available, I had to do some fiddling to configure the library properly for this device.

The code is based on the custom-class example from V-USB. This abuses USB control transfers to transmit data.

On the PC side I'm using PyUSB instead of going to libusb directly, as in the example.

CUSTOM_RQ_GET = 2 # get ldr value

def is_target_device(dev):
    if dev.manufacturer == "xythobuz.de" and dev.product == "AutoBrightness":
        return True
    return False

dev = usb.core.find(idVendor=0x16c0, idProduct=0x05dc, custom_match=is_target_device)
dev.set_configuration()

r = dev.ctrl_transfer(usb.util.CTRL_TYPE_VENDOR | usb.util.CTRL_IN, CUSTOM_RQ_GET, 0, 0, 2)
val = int.from_bytes(r, "little")

To run this without root permissions you need to add a udev rule (in eg. /etc/udev/rules.d/49-autobrightness.rules).

SUBSYSTEMS=="usb", ATTRS{idVendor}=="16c0", ATTRS{idProduct}=="05dc", ATTRS{manufacturer}=="xythobuz.de", ATTRS{product}=="AutoBrightness", MODE:="0666"

I'm using the shared V-USB vendor and product IDs, so I have to always do the matching using my manufacturer and product strings as well.

Prototype Client

With the hardware side out of the way the next step was adjusting the display brightness. I made a short prototype using ddcutil to set the values.

To calculate the resulting values I made some measurements at midday (~500 lux) and night (~50 lux). And I thought about my habits (the MSI display seems ~10% brighter than the HP).

c_in = 0.6, -60.0, # in_a, in_b
calibration = {
    "HPN:HP 27xq:CNK1072BJY": [
        1.0, 30.0, # out_a, out_b
    ],

    "MSI:MSI G27CQ4:": [
        1.0, 20.0, # out_a, out_b
    ],
}

def cal(v, c):
    # out = out_b + out_a * in_a * max(0, in_b + in)
    return c[1] + c[0] * c_in[0] * max(0, c_in[1] + v)

This simple formula gives surprisingly good results. To avoid noticable noisy changes I do some simple low-pass filtering of the sensor values.

filter_fact = 0.9

def filter_lux(old, new):
    return (old * filter_fact) + (new * (1.0 - filter_fact))

All this just runs once per second.

Unfortunately, using ddcutil to adjust the brightness causes a noticable stutter of the whole system each time the value is changed. So this is not a good long-term solution.

Telling ddcutil to directly talk to the I2C bus helped a bit, but it still stutters slightly.

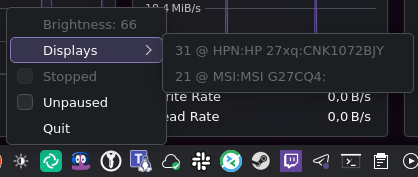

To alleviate this a bit I'm now using a KWin script to check for a full-screen app so I can pause brightness updates.

var win = workspace.activeWindow;
var name = win.caption;
var pid = win.pid;
var state = (win.bufferGeometry == win.output.geometry);
var obj = { name: name, pid: pid, fullscreen: state };
print(JSON.stringify(obj));

As usual I'm also sending all these values to my local InfluxDB.

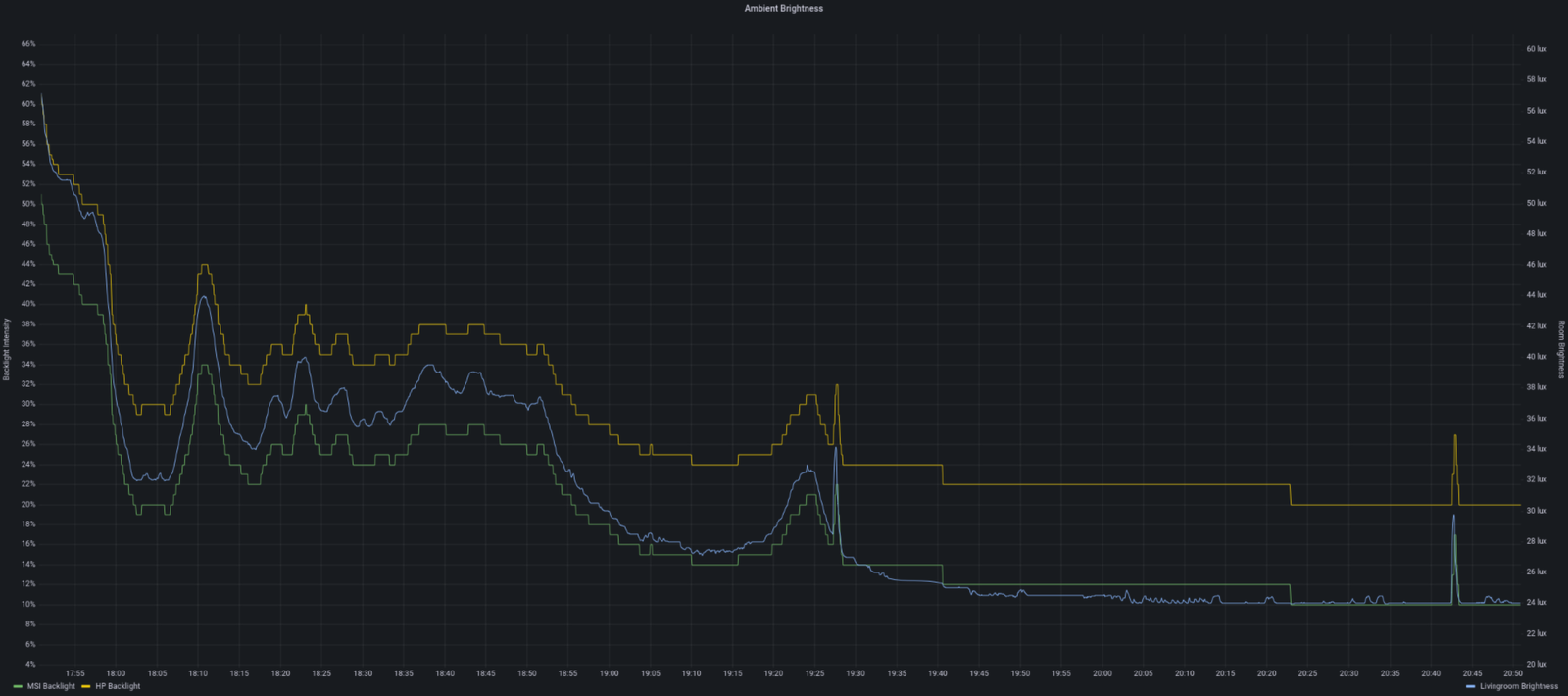

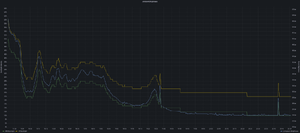

Input and Output data in Grafana

Proper Client

My initial idea for the client was to use the ambient light sensor to also "calibrate" the two displays to each other. To do this, a white square could be shown on both screens. Then the sensor can be placed in front of each display to measure their brightness "ramps". This could then give the calibration dictionary shown above.

To determine the c_in values the room brightness has to be measured at day and night.

This should automate the process I've done manually to determine the calibration values.

But as you may have noticed, I'm more the prototype kind of guy and don't really do finished products on here. So...

To Do 😅
